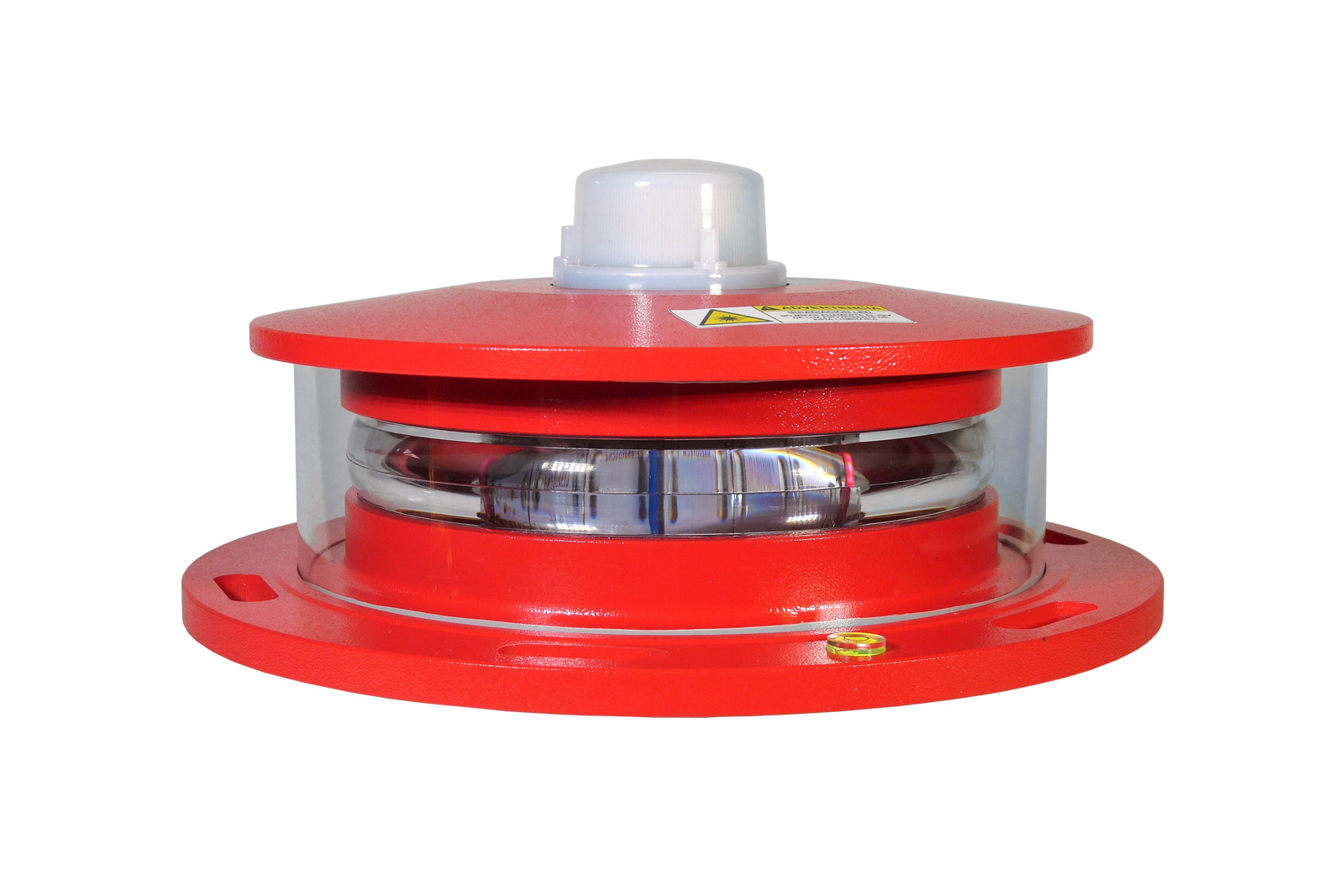

Obstruction light from a side view.

RTCH864GPS

Medium intensity obstruction light with built-in GPS antenna and ambient light sensor for night time marking of structures that may be a hazard to aviation.

Main Features

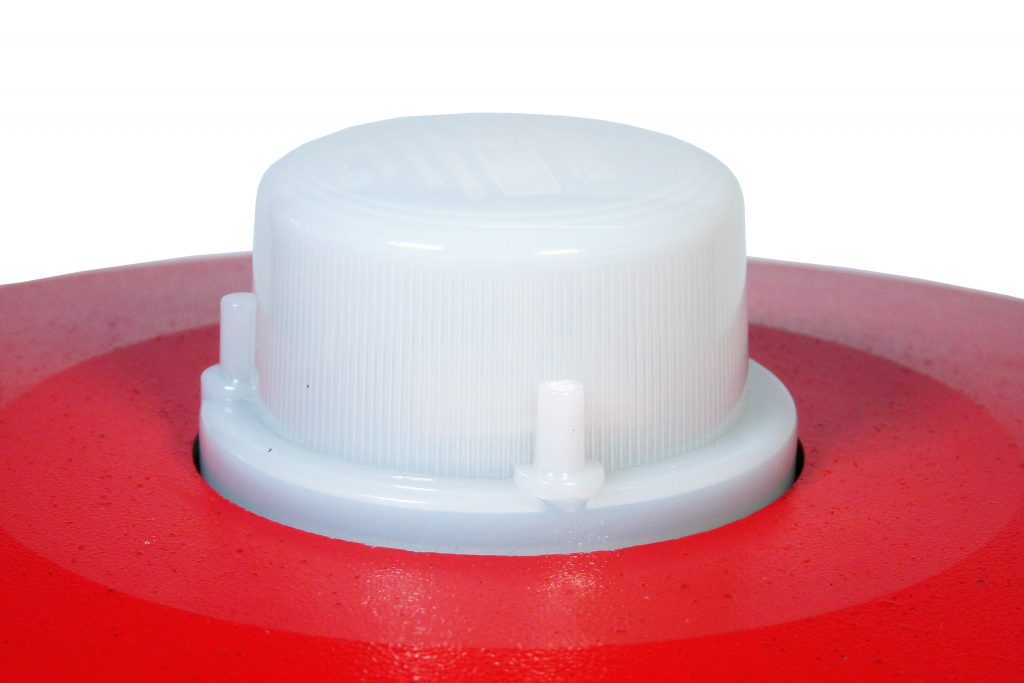

Obstruction light GPS antenna radome.

All-in-one solution

The obstruction light includes a high gain active GPS antenna and an ambient light sensor, reducing the quantity of different devices that need to be installed separately thus simplify wiring.

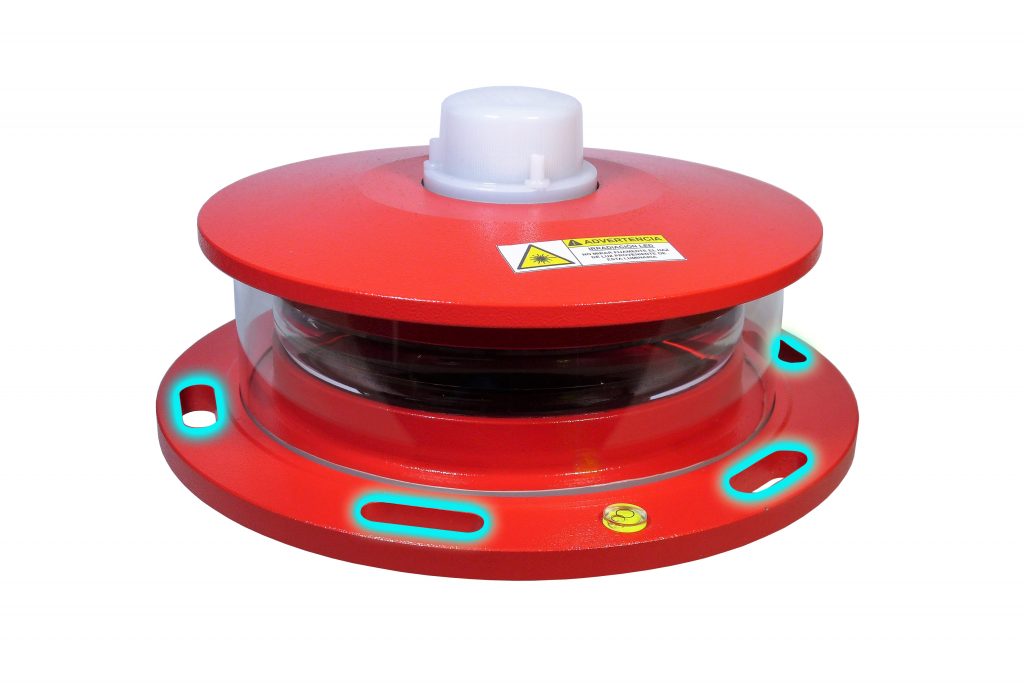

Obstruction light mounting holes

Mounting options

Six rounded rectangle shaped mounting holes have been positioned along the base of the beacon for easy mounting. Alternatively, the unit can be supplied with a thread in the bottom for fixing using a pipe.

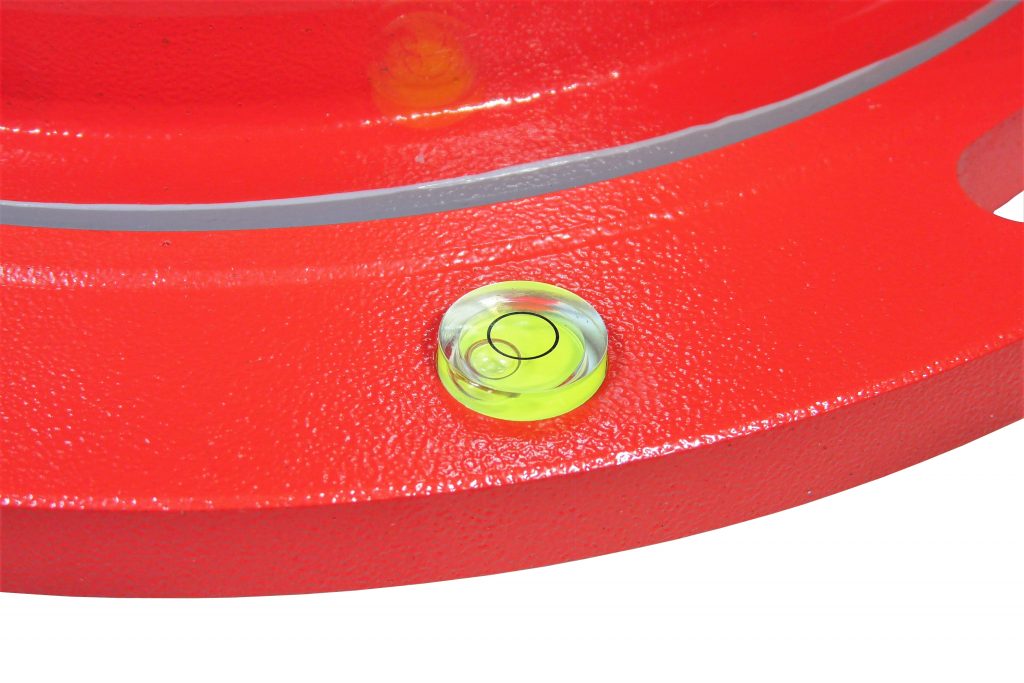

Obstruction light circular level

Circular vial

A vial is located in the base of the beacon to better assist the positioning of the unit. This is an extremely important process to guarantee that the photometric performance is not compromised by a bad installation.

Download Datasheet

Specifications

     KEY FEATURES

  • An interleaved array of high intensity LEDs provide longer service life by permitting the loss of individual LEDs.
  • Lightweight yet durable unit made of aluminum for better resistance.
  • Easy to install using the provided holes or by a means of a thread located at the bottom.
  • All-in-one solution which includes a built-in GPS antenna and ambient light sensor.
  • Low power consumption.
  • No maintenance required over service life.
  • UV resistant optics and antenna radome.
  • Three year limited warranty.

     REGULATIONS

  • ICAO Annex 14, volume l; International standards and recommended practices: Aerodrome design and operations, 6th Edition, July 2013, Chapter 6.
  • Federal Aviation Administration AC 70/7460-1L; Obstruction Marking and Lighting, October 2016.
  • Administración Nacional de Aviación Civil C-090-001-2015; Circular Técnica de Balizamiento, May 2015.

    ELECTRICAL CHARACTERISTICS

  • Input Voltage: 24 VDC.
  • Power Consumption: 60 W (night mode).
  • ALS (Ambient Light Sensor) Input Voltage: 12 VDC.
  • GPS Antenna Input Voltage: 5 VDC.

     PHYSICAL CHARACTERISTICS

  • Dimmesions (H x D): 150 x 300 mm.
  • Weight: 7 kg.
  • Operating Temperature Range: -40°C to +55°C.
  • Storage Temperature Range: -55°C to +55°C.
  • Relative Humidity: 95%.
  • Structure Material: aluminum.
  • Optics Material: UV resistant acrylic.

     PHOTOMETRIC CHARACTERISTICS

  • Horizontal Beam Spread: 360°.
  • Vertical Beam Spread: 3°.
  • Peak Effective Intensity: 2.000 ± 25% cd.
  • Flash Rate: 30 ± 3 FPM.
